XB031AAD (ABLT)
$2,950.00
Description

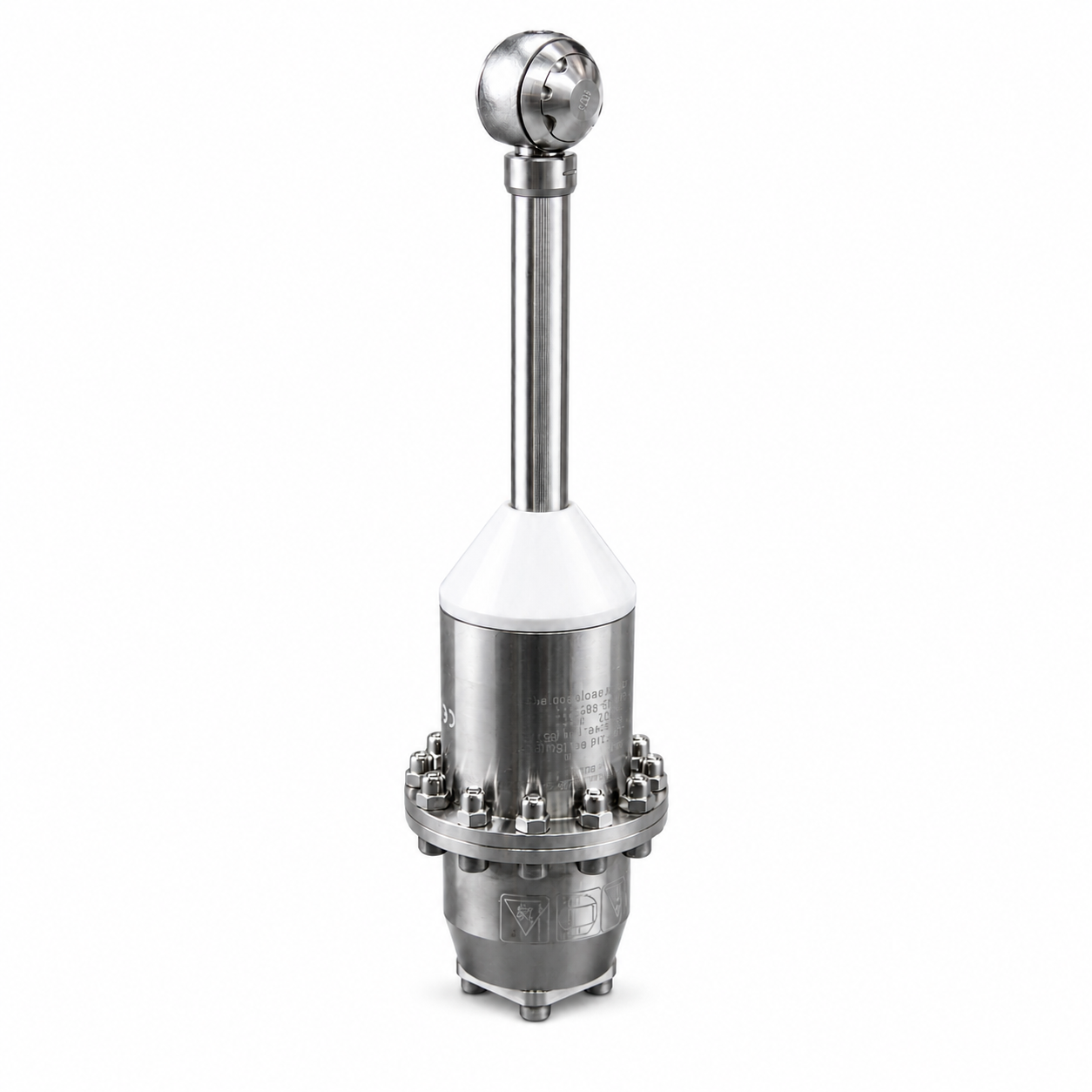

AAQUATOOLS | ROTATING CLEANING HEAD
XB031AAD Cleaning Head
Water-powered rotating cleaning head designed for interior cleaning of tanks, totes, drums and other closed industrial containers.
The XB031AAD is constructed from AISI 316 stainless steel and is used with the AaquaBlaster LT, ToteBlaster LT and DrumBlaster cleaning systems.
With a maximum capacity of 8 GPM and 2,100 PSI, the XB031AAD features a rotating nozzle holder configured with two or four nozzles. Nozzle sizing must be matched to the operating flow and pressure of the pressure washer.
COMPATIBLE AAQUATOOLS SYSTEMS
AaquaBlaster LT • ToteBlaster LT • DrumBlaster
KEY OPERATING INFORMATION
Operating Specifications
|
MAXIMUM FLOW
8 GPM
30.3 L/min
|
MAXIMUM PRESSURE
2,100 PSI
150 bar
|
|
MAXIMUM TEMPERATURE
194°F
90°C
|
ROTATION SPEED
24 RPM
25 rotations per cycle
|
PRODUCT DETAILS
Configuration & Specifications
| Model | XB031-AAD_BQ.03 |
|---|---|
| Product Type | Rotating cleaning head |
| Maximum Flow | 8 GPM / 30.3 L/min |
| Maximum Pressure | 2,100 PSI / 150 bar |
| Maximum Temperature | 194°F / 90°C |
| Rotation Speed | 24 RPM |
| Full Cleaning Cycle | 25 rotations / approx. 1.1 min. |
| Nozzles | 2 or 4 |
| Nozzle Type | Special XB030 |
| Drive | Water powered |
| Material | AISI 316 stainless steel |
| O-Ring | EPDM |
| Seals | PTFE + carbon fiber |
| Weight | 10.1 lb. / 4.6 kg |
| Recommended Filtration | 60 micron between pump & head |
| Compatible Systems | AaquaBlaster LT, ToteBlaster LT & DrumBlaster |
| Intended Use | Interior cleaning of closed containers |
Not Sure If This Cleaning Head Fits Your System?
Cleaning head configuration depends on your pressure washer’s operating flow and pressure. Please confirm your equipment model and operating specifications before ordering.
Important:
Nozzle sizing must be matched to the pressure washer’s GPM and PSI to ensure proper cleaning head operation.
|
Confirm Compatibility |
Cleaning Head Service & Repair |
View Parts Breakdown |
Cleaning head configuration and nozzle selection should be confirmed prior to ordering. Specifications are subject to change.
Additional information
| Weight | 10 lbs |
|---|
