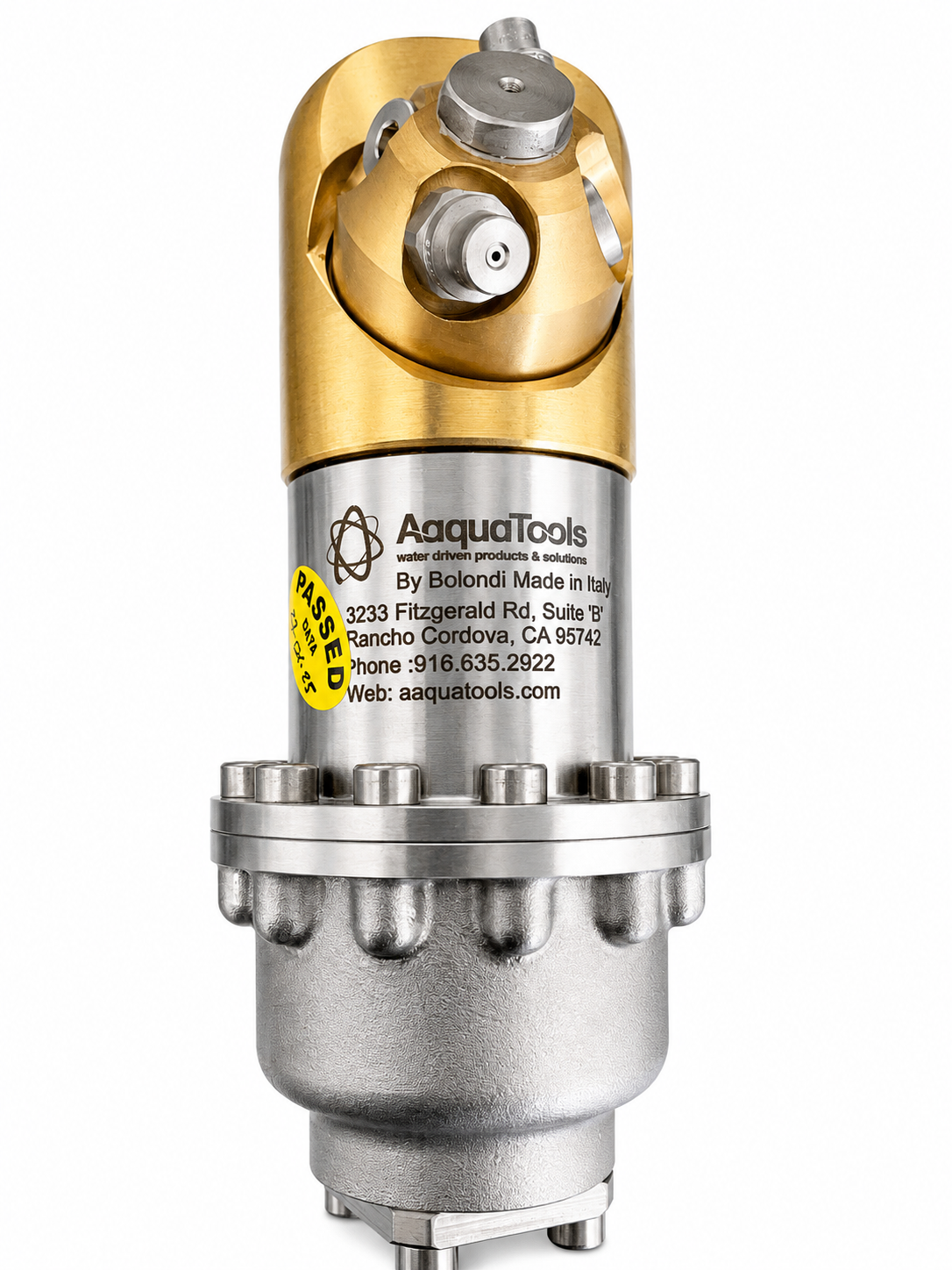

SW053A Cleaning Head
The SW053A is a water-powered rotating cleaning head used with AaquaTools Tip-Too and CartBlaster II systems. Its controlled 240° Rotary spray directs high-pressure cleaning impact where it is needed.
SW053AThe Cleaning Head Behind Tip-Too & CartBlaster II
High-pressure water powers the SW053A’s internal mechanism and rotating nozzle holder. Unlike a full 360° cleaning head, the SW053A directs its spray through a controlled 240° Rotary for concentrated cleaning coverage.
AaquaTools uses the SW053A with the Tip-Too and CartBlaster II container-cleaning systems. The head is configured for the pressure and flow requirements of the system, and changes in operating flow may require a different diffuser and nozzle setup.
A defined 240° Rotary concentrates cleaning impact in the target area.
Supports approximately 4–16 GPM with the correct diffuser and nozzle configuration.
Available with 2, 3 or 4 nozzles depending on the application and setup.
A 700-micron inlet filter helps protect the cleaning head from debris.
When to Choose the SW053A
Choose the SW053A when your cleaning application benefits from a focused 240° Rotary rather than a full 360° pattern. It is the cleaning head AaquaTools uses with the Tip-Too and CartBlaster II systems.
If you are building or maintaining one of these systems, the SW053A can be configured to match the pressure washer’s flow using the appropriate diffuser and nozzle combination.
Pressure Washer Flow Drives the Head
Specifications
Operating specifications for the SW053A cleaning head.
Focused Container Cleaning
Designed for applications that benefit from controlled sector cleaning.
SW053A Systems, Parts & Service
Tip-Too
See the AaquaTools cart and container cleaning system that uses the SW053A cleaning head.
View Tip-Too →CartBlaster II
See the AaquaTools container cleaning system that uses the SW053A cleaning head.
View CartBlaster II →Parts Breakdown
Use the exploded diagram to identify replacement components.
View Parts Breakdown →Service & Repair
AaquaTools provides inspection, cleaning, seal replacement and repair support for rotating cleaning heads.
View Service Options →Need the Right SW053A Configuration?
Tell us your pressure washer’s GPM and PSI and whether you’re using a Tip-Too, CartBlaster II or another application. We can help confirm the correct diffuser and nozzle setup.
